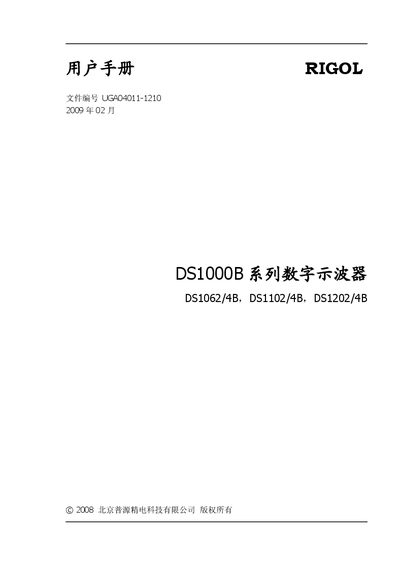

This document is the user manual for RIGOL DS1000B series digital oscilloscopes, providing detailed information on the features and usage of this product line.
This manual covers general safety precautions, measurement categories, and symbols required for safe operation of the Rigol DS1000B series digital oscilloscopes. It also details the user interface, basic and advanced operation procedures, and includes appendices for troubleshooting and reference.
Key features such as bandwidth options, sampling rates, display resolution, and USB storage capabilities are described, along with guidance on trigger settings, waveform math functions, and automatic measurements. This manual is written in Chinese.
| Bandwidth | 200 MHz (DS1202/4B), 100 MHz (DS1102/4B), 60 MHz (DS1062/4B) |
|---|---|
| Analog Channels | 2 or 4 |
| Real‑time Sampling Rate | 2 GS/s |
| Equivalent Sampling Rate | 50 GS/s |
| Display Resolution | 320 × 240 color LCD |
| USB Storage Support | Plug‑and‑play USB storage devices and printer support |
The input terminals may be connected to circuits with a line voltage up to 300 VAC; higher voltages must not be used.
Only personnel authorized by Rigol may carry out maintenance procedures.
