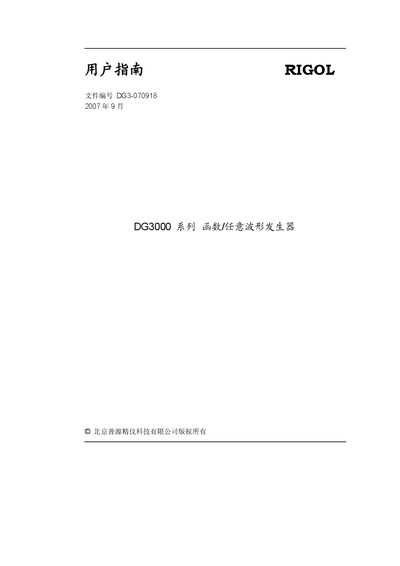

This manual introduces the DG3000 series function/arbitrary waveform generators, which use direct‑digital‑synthesis (DDS) technology to produce stable, low‑distortion signals up to 120 MHz. It describes the front‑panel layout, key features such as built‑in modulation, USB/LAN/GPIB interfaces, and remote SCPI control.
The document also covers safety precautions, basic setup, waveform selection, modulation settings, storage and retrieval, and example applications. Detailed chapter headings guide users through troubleshooting, network configuration, and system prompts. This manual is written in Chinese.
| Ethernet Interface | 10/100 M |
|---|---|
| Communication Interfaces | USB, RS232, GPIB (IEEE‑488), LAN |
| Internal Waveform Memory Depth | 1 M points |
Only qualified personnel should perform maintenance, the unit must be properly grounded, use the correct power cord, avoid fire hazards, and keep the device dry and clean.
The instrument provides USB Host & Device, RS232, GPIB (IEEE‑488), and 10/100 M Ethernet interfaces.
