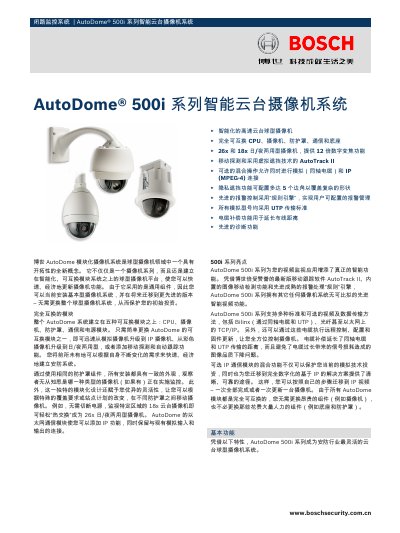

The AutoDome® 500i series intelligent PTZ camera system is a groundbreaking concept in the field of dome cameras. It is not only a camera series, but also a modular camera platform built on an intelligent and interchangeable module system, allowing for quick and cost-effective updates to camera functionality. The system is built on five interchangeable modules: CPU, camera, housing, communication, and power modules. The series supports various standard and optional video and data transmission methods, including Bilinx, fiber optic, and TCP/IP over Ethernet. The cameras in this series offer advanced intelligent video features, such as AutoTrack II software, image motion detection, and customizable alarm management.
The AutoDome® 500i series is a modular, intelligent PTZ dome camera system that offers interchangeable CPU, camera, housing, communication and power modules. It supports both analog and IP operation, 18x or 26x day/night cameras, and advanced features such as AutoTrack II and virtual‑mask video motion detection.
This manual covers system overview, key features, technical specifications, installation and maintenance procedures, configuration options, alarm input/output handling, environmental ratings, mounting dimensions, and troubleshooting guidance. This manual is written in Chinese.
| Image sensor (18x model) | 1/4 inch Exview HAD CCD (752 x 582 PAL)/(768 x 494 NTSC) |
|---|---|
| Lens (18x model) | 18x optical zoom (4.1‑73.8 mm) |
| Digital zoom | 12x |
| Horizontal resolution | 470 TV lines (NTSC) / 460 TV lines (PAL) |
| Video output | 1.0 Vp‑p, 75 Ω |
| Power consumption (analog model) | 15 W |
The system supports up to 99 preset positions.
EnviroDome can operate from –40 °C to –60 °C with the optional XT temperature kit.
The AutoDome 500i provides seven alarm inputs, including two analog inputs.
Video output is 1.0 Vp‑p into a 75 Ω load.
