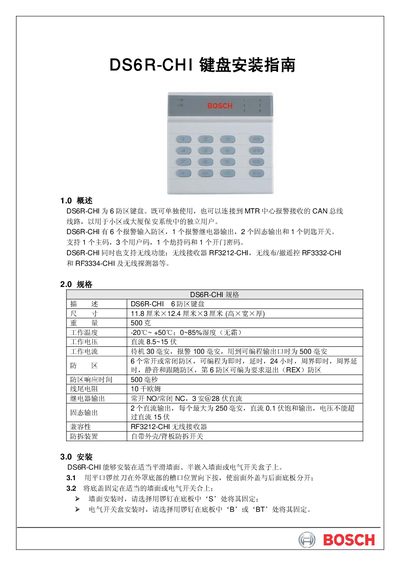

DS6R-CHI 6 area keyboard installation guide, introduces the product features, specifications, installation methods, etc.
The DS6R-CHI is a 6‑zone security panel that can operate independently or be linked to a central monitoring system via CAN or RS‑485. The guide explains the mechanical mounting options, wiring diagrams, and how to connect external devices such as RF3212‑CHI remote units and field sensors.
Key sections cover the panel specifications, detailed installation steps, RS‑485 bus termination, zone wiring, external tamper and alarm configurations, as well as troubleshooting procedures for low‑voltage and sensor faults. This manual is written in Chinese.
| Dimensions | 11.8 x 12.4 x 3 mm |
|---|---|
| Weight | 500 g |
| Operating temperature | -20 °C to +50 °C |
| Maximum distance to RF3212‑CHI remote unit | 20 m |
