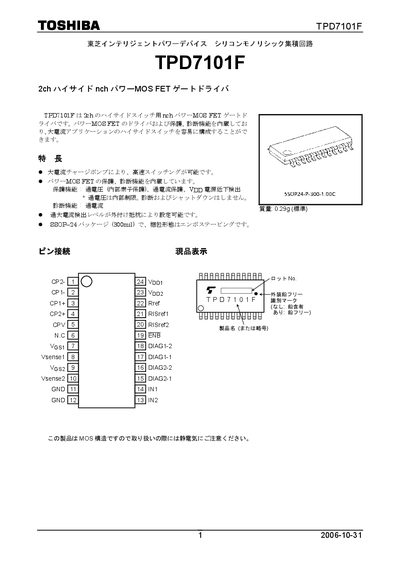

The TPD7101F is a 2‑channel high‑side n‑channel power MOSFET gate driver that integrates protection and diagnostic functions for high‑current applications. It includes over‑voltage, over‑current, and VDD‑drop detection features and can be configured via external resistors.
The document contains a block diagram, detailed pin assignments, absolute maximum ratings, electrical characteristics, package dimensions, and example application circuits, along with handling and safety notices for reliable integration into electronic systems. This manual is written in Japanese.
| Supply voltage (Vpp) max | 30 V |
|---|---|
| Power loss (Pp) | 0.8 W |
| Operating temperature range | -40 °C to 110 °C |
| Storage temperature range | -55 °C to 150 °C |
| Package type | SSOP24‑P‑300‑1.00C |
| Mass | 0.29 g (standard) |
It is a 2‑channel high‑side n‑channel power MOSFET gate driver.
The device includes over‑voltage (internal element protection), over‑current protection, and VDD‑drop detection.
The maximum supply voltage Vpp is 30 V.
It operates from –40 °C up to 110 °C.
