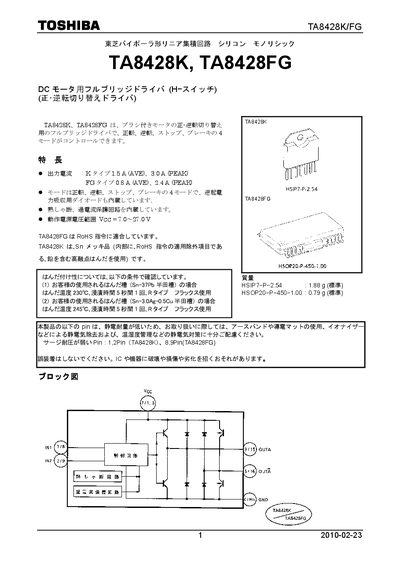

TA8428K/FG is a motor driver chip from Toshiba. It has four working modes: forward, reverse, stop, and brake. The maximum output current can reach 3.0A.
The TA8428K/FG IC provides a full‑bridge driver solution for brushed DC motors, allowing forward, reverse, stop and brake operation. It integrates a PNP voltage comparator, diode for back‑EMF absorption, and internal over‑current and thermal shutdown circuits.
The device operates from a 7.0 V to 27.0 V supply, delivers up to 3.0 A peak current (K type) or 2.4 A peak (FG type), and includes detailed pin descriptions, absolute‑maximum ratings, and example application circuits for motor control designs. This manual is written in Japanese.
| Output current (K type) AVE | 1.5 A |
|---|---|
| Output current (K type) PEAK | 3.0 A |
| Output current (FG type) AVE | 0.8 A |
| Output current (FG type) PEAK | 2.4 A |
| Supply voltage range (VCC) | 7.0 V – 27.0 V |
| Absolute maximum supply voltage (VCC) | 30 V |
| Operating temperature range | -30 °C – 85 °C |
The IC includes over‑current (ISD) and thermal shutdown (TSD) protection circuits.
The device operates with a supply voltage between 7.0 V and 27.0 V.
K type: up to 3.0 A peak (1.5 A average); FG type: up to 2.4 A peak (0.8 A average).
