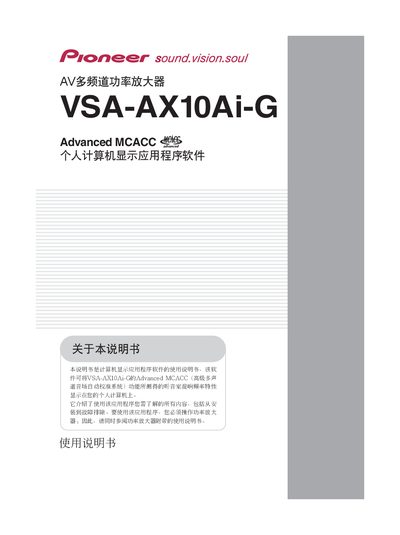

This document is the user manual for the AV multi-channel power amplifier VSA-AX10Ai-G Advanced MCACC personal computer display application software, which allows users to view the reverberation frequency characteristics of their listening environment on their personal computers.
This manual explains the Advanced MCACC application that runs on a personal computer and displays the reverberation characteristics of the listening room measured by the Pioneer VSA-AX10AI-G multi‑channel power amplifier. It describes how to install the software, connect the amplifier via RS‑232C, and use the various functions such as Reverb View, Advanced EQ Setup, and data saving.
The guide also lists system requirements, provides step‑by‑step installation instructions, details how to receive measurement data, and includes troubleshooting tips for common errors during installation or operation. This manual is written in Chinese.
| Minimum CPU | Pentium 3/300 MHz or AMD K6/300 MHz |
|---|---|
| Minimum Memory | 128 MB |
| Minimum Display Resolution | 800 × 600 |
| RS‑232C Cable Type | Female‑to‑female crossover cable (interlink or reverse) |
A CPU of at least Pentium 3 / 300 MHz or AMD K6 / 300 MHz, 128 MB of RAM, and a display capable of 800 × 600 resolution are required.
Connect the amplifier to the PC using a female‑to‑female crossover RS‑232C cable and select the appropriate COM port in the software.
