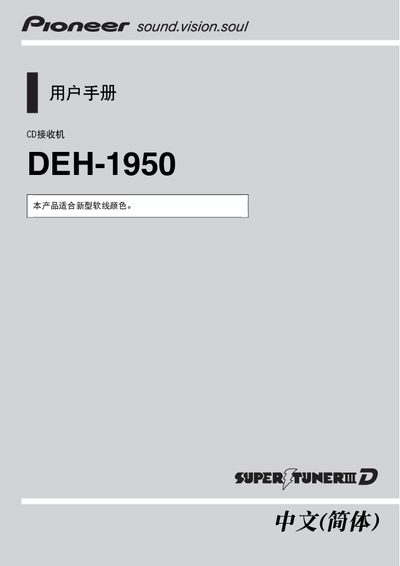

DEH-1950 CD Receiver User Manual, introducing the product's features and usage methods.
This manual covers all aspects of using the Pioneer DEH-1950 CD receiver, including button functions, LCD display information, basic operation such as power on/off, source selection, volume control, and detailed audio adjustments like equalizer, balance, and loudness. It also explains the built‑in CD player features, FM/AM tuner operation, and auxiliary input usage.
Safety precautions, wiring diagrams, installation steps for the front panel and DIN connectors, error codes, and full technical specifications are provided. The document ends with contact information for Pioneer service centers and copyright details. This manual is written in Chinese.
| Rated power supply | 14.4 V DC (range 12.0‑14.4 V DC) |
|---|---|
| Maximum current consumption | 10.0 A |
| Dimensions (DIN body) | 178×50×162 mm |
| Weight | 1.3 kg |
| Audio continuous output power | 2 W × 4 per channel |
| Maximum audio output power | 50 W × 4 |
| FM frequency range | 87.5 MHz – 108.0 MHz |
Press FUNCTION, then select CLOCK, use c/d to choose hour or minute display, and adjust with a/b.
