TLRMH17TP,TLSH17TP,TLOH17TP,TLYH17TP are LED lamps produced by Toshiba. They are characterized by ultra-high brightness and low power consumption.

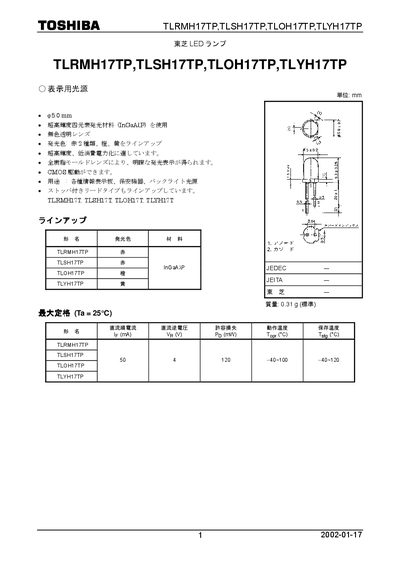

This document provides the specifications for Toshiba's TLRMH17TP, TLSH17TP, TLOH17TP, and TLYH17TP LED lamps. It includes optical data such as peak wavelength and luminous intensity, as well as electrical parameters like forward current, reverse voltage, and power dissipation.
The manual also contains usage guidelines, recommended soldering conditions, and safety precautions for handling the semiconductor components, including warnings about GaAs material and disposal requirements. This manual is written in Japanese.
| Peak wavelength (TLRMH17TP) | 626 nm |
|---|
The recommended soldering temperature is 260 °C.
Avoid breaking, grinding, or chemically decomposing the GaAs material, and follow proper disposal regulations.
They are used for information display panels, safety equipment, and backlight sources.
