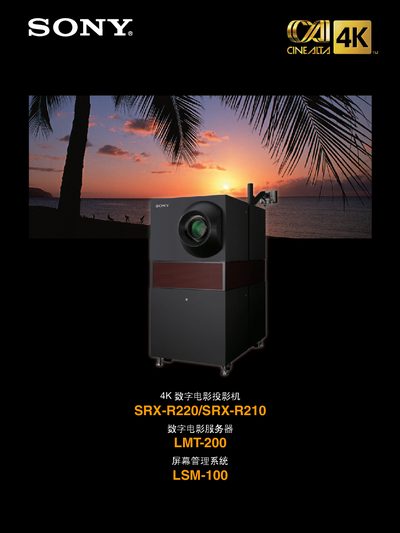

Sony 4K Digital Cinema Solution is a high-resolution projector system specially designed for digital cinema applications. The system includes SRX-R220/SRX-R210 digital cinema projectors, LMT-200 digital cinema server (sold separately), and LSM-100 screen management system software (sold separately). The system is equipped with SXRD™ three-piece silicon crystal reflection imaging system, which can provide 4096 x 2160 pixels (horizontal x vertical) resolution, which is four times that of full HDTV (1920 x 1080). SXRD device can also provide SMPTE standard brightness level: On a 20-meter wide screen, the image brightness of SRX-R220 is 14 ft-L*; On a 17 or 14-meter wide screen, the image brightness of SRX-R210** is 14 ft-L, and both have a high contrast ratio of 2000:1.
This manual covers the SRX-R220 and SRX-R210 4K digital cinema projectors, describing their high‑contrast SXRD imaging system, 4096 × 2160 resolution, and optional lamp powers. It also explains the associated LMT‑200 digital media server and LSM‑100 curtain management system that together form a complete cinema solution.
Installation instructions, control software usage, brightness and color settings, and detailed specifications such as contrast ratio, lamp power, input formats, dimensions, and weight are provided to help operators set up and maintain the projectors efficiently. This manual is written in Japanese.
| Resolution | 4096 × 2160 (horizontal × vertical) |
|---|---|
| Contrast Ratio | 2000:1 (SXRD device 4000:1) |
| Lamp Power (SRX‑R220) | 4.2 kW |
| Lamp Power (SRX‑R210) | 3.0 kW or 2.0 kW |
| Dimensions (W × H × D) | 443 mm × 181 mm × 560 mm (excluding protruding parts) |
| Weight | 24 kg |
Both models provide a contrast ratio of 2000:1, while the SXRD device itself can reach 4000:1.
The SRX‑R220 is equipped with a 4.2 kW lamp.
They support a native 4K resolution of 4096 × 2160 pixels.
