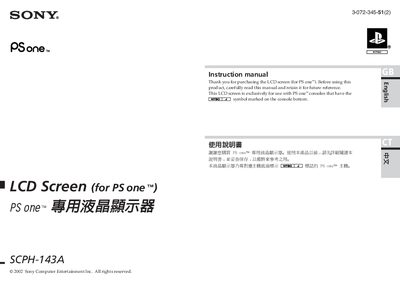

Sony SCPH-143A LCD Screen User Manual

About this manual

This manual covers important safety and health precautions for using the Sony SCPH-143A LCD screen with a PS One console, including warnings about fire, electrical shock, and proper handling of the AC adaptor. It also explains how to connect the screen, adjust brightness and volume, use headphones, and connect to a TV or other video equipment.

Additional sections describe cleaning and maintenance procedures, transport guidelines, and troubleshooting common issues such as moisture condensation, static image retention, and backlight problems. The document ends with specifications, warranty information, and regulatory notices.

What's inside

• Precautions
• Checking the package contents
• Part names
• Connecting the LCD screen to your PS one console
• Using the LCD screen
• Adjusting the brightness of the screen
• Adjusting the volume
• Using headphones with the LCD screen
• Connecting your PS one console to a TV set
• Troubleshooting

Specifications

Frequently asked questions

Which AC adaptor should I use with the SCPH-143A LCD screen?

Use only the supplied SCPH-122B AC adaptor; other adaptors may cause fire, electrical shock, or damage.

How do I clean the LCD screen safely?

Disconnect the AC adaptor, then wipe the exterior with a soft dry cloth; avoid wet cloths, paint thinner, or chemicals.

What should I do if moisture condenses inside the screen?

Do not turn the console on until the moisture evaporates (several hours); if it still does not work, contact PlayStation service.

How can I adjust the screen brightness?

Press the brightness +/- buttons on the front of the LCD screen.
