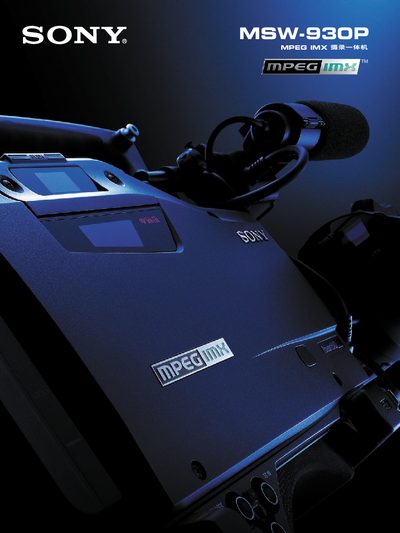

MSW-930P is a MPEG IMX camera, using MPEG-2 4:2:2P@ML 50 Mb/s I frame compression technology, with high-fidelity image quality and a variety of unique shooting functions.
The Sony MSW-930P is an all‑in‑one MPEG IMX videography system. This manual provides detailed information on power requirements, supported memory media, video and audio output connectors, and other technical specifications needed for proper installation and use.
Key sections include power supply details, connector pin‑outs, Memory Stick compatibility, and Genlock settings, allowing users and technicians to set up and maintain the unit safely and efficiently.
| Power supply | DC 12 V, +5.0 W, 1.0 V |
|---|---|
| Video output level (BNC) | 1.0 Vp‑p, 75.9 dB |
| Audio output level (BNC) | 0.5 Vp‑p, 10 kΩ |
| Supported memory card | Memory Stick™ |
The unit operates from a DC 12 V supply and consumes about +5.0 W at 1.0 V.
The MSW-930P uses Sony Memory Stick™ cards for recording and storage.
The device provides BNC video outputs with a 1.0 Vp‑p level (75.9 dB).
The model number is MSW‑930P.
