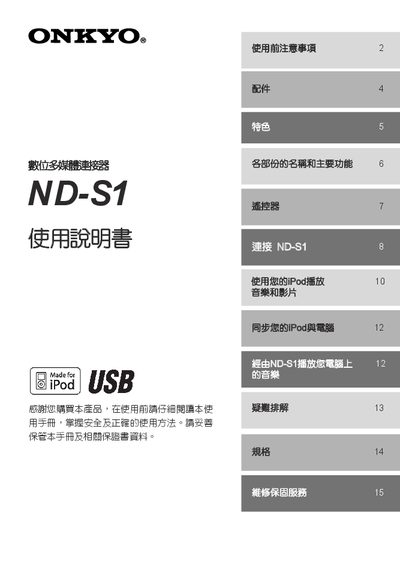

This document describes the usage and precautions of a digital multimedia connector, including connection methods, usage instructions, accessories, and remote control.
The Onkyo ND‑S1 is a digital multimedia connector that lets you play music and video from an iPod or PC through your Onkyo audio system. It supports optical, coaxial and video outputs, USB audio transfer, and iPod charging.
The guide covers safety precautions, accessory list, remote‑control operation, how to connect and sync iPod or PC, detailed specifications, and a troubleshooting section for common issues such as no sound or video, remote‑control problems, and power‑supply warnings. This manual is written in Chinese.
| Power Input | 100‑240 V AC transformer 5 V/1 A |
|---|---|
| Power Consumption | 3.5 W |
| Standby Power | 0.4 W |
| USB Current Draw | 250 mA |
| Dimensions (W×H×D) | 205 × 34 × 175 mm |
| Weight | 530 g |
| Output Terminals | Optical digital audio, coaxial digital audio, video, USB, AC adapter |
It requires a 100‑240 V AC input with a dedicated 5 V/1 A transformer, consuming 3.5 W during use and 0.4 W in standby.
