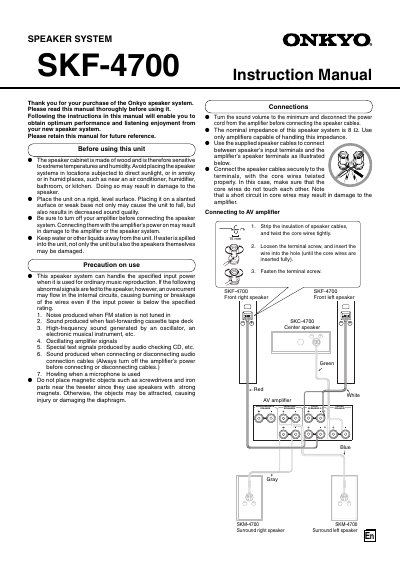

This document is a purchase manual for the Onkyo speaker system, providing instructions for use and tips for achieving optimal performance and listening enjoyment. It advises against placing the speakers in direct sunlight, smoky or humid places, and emphasizes the importance of placing them on a stable surface and turning off the amplifier before connecting.
This manual explains how to install and connect the Onkyo SKF-4700 speaker system safely. It covers precautions before powering the amplifier, wiring guidelines, and how to attach the supplied speaker stands and grilles.
It also describes proper speaker placement, care of the cabinet and grille, magnetic shielding for TV use, and lists the technical specifications of the system.
| Impedance | 8 Ω |
|---|---|
| Maximum input power | 130 W |
| Output sound pressure level | 89 dB/W/m |
| Frequency response | 50 Hz – 40 kHz |
| Crossover frequency | 4.5 kHz |
| Cabinet capacity | 27 L |
| Overall dimensions | 157 mm (W) × 1000 mm (H) × 207 mm (D) |
| Weight | 8.8 kg |
The nominal impedance is 8 Ω.
Hold the bottom edge, pull gently to remove the bottom; pull the upper edge similarly to remove the top. To re‑attach, push the corner projections into the grille plug holes.
Three‑meter speaker cables (×2), spacers (×8), stands (×8), and M5 × 40 mm screws (×8).
