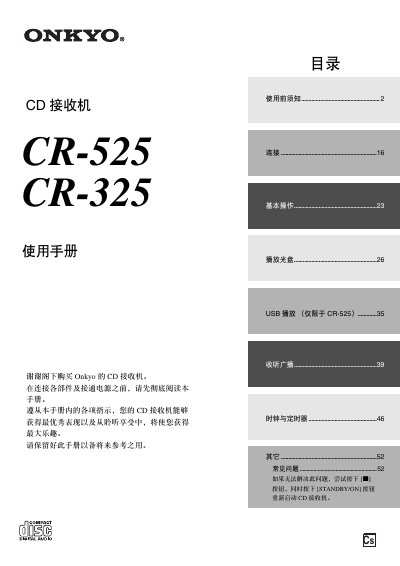

This manual provides detailed instructions for installing, operating, and maintaining the Onkyo CR-525 and CR-325 CD receivers. It includes safety warnings, power‑up procedures, remote‑control usage, battery installation, and troubleshooting steps.
The document also lists the technical specifications of both models, such as power consumption, audio inputs/outputs, amplifier output, and radio tuning ranges, helping users understand the capabilities and limits of the equipment. This manual is written in Chinese.
| Power supply | AC 220‑230 V, 50/60 Hz |
|---|---|
| Power consumption | 65 W (CR‑525) / 58 W (CR‑325) |
| Standby power consumption | 0.25 W |
| Dimensions (W × H × D) | 205 mm × 116 mm × 367 mm |
| Weight | 4.0 kg |
| Audio input (analog) | 2 × RCA (CD/MD) |
| Audio output (analog) | 2 × RCA (MDATAPE OUT) |
| Amplifier output power | 19 W + 19 W (8 Ω, 1 kHz) |
| Total harmonic distortion (THD) | 0.4 % (1 kHz, 1 W) |
| FM tuning range | 87.5 MHz – 108.0 MHz |
| AM tuning range | 522 kHz – 1610 kHz |
Press the [国] button together with the [STANDBY/ON] button, then restart the CD receiver.
Two RE6/AA batteries are required; install them according to the polarity markings (+ for positive, – for negative).
The standby power consumption is 0.25 W.
Yes, the USB port on the CR‑525 allows playback of music files from a USB storage device (MP3, WMA, etc.).
