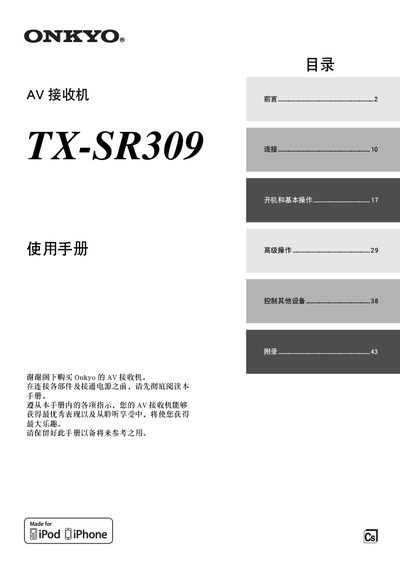

Onkyo TX-SR309AV AV Receiver User Manual

Onkyo TX-SR309 AV receiver user manual, introduces the product features, usage methods, etc

Brand: Onkyo
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 56
File format: PDF
File size: 1.9 MB
Published: 09 March, 2012
Updated: 30 September, 2023
Model: TX‑SR309
MD5 checksum: C6D27F459DC66C7694FE226422F8BB93
PDF: Onkyo TX-SR309AV AV Receiver User Manual PDF

About this manual

This manual provides safety precautions, installation guidance, and basic operation steps for the Onkyo AV receiver. It includes instructions for connecting power, antennas, HDMI, and other audio/video sources, as well as remote control usage.

Advanced features such as Music Optimizer, speaker configuration, and HDMI settings are described, along with troubleshooting tips and specifications of the unit. This manual is written in Chinese.

What's inside

Introduction
Safety Precautions
Features
Front and Rear Panel
Connections
Power On and Basic Operation
Advanced Operation
Troubleshooting
Specifications

Specifications

Power Output (IEC)	100 W per channel @ 6 Ω
Power Output (JEITA)	120 W per channel @ 6 Ω
HDMI Inputs	3 HDMI inputs, 1 HDMI output

Frequently asked questions

How should I connect or disconnect the power cord?

Before any service, unplug the power cord from the AC outlet and avoid removing the device’s cover yourself.
