TER850S/860S fiber transceiver is a product that meets the IEEE802.3 10BASE-TX, IEEE802.3u 100BASE-TX/FX standard. It supports 10/100Mbps adaptive data transmission rate, automatically detects half-duplex/full-duplex mode, and supports over 2KM remote transmission in full-duplex mode.

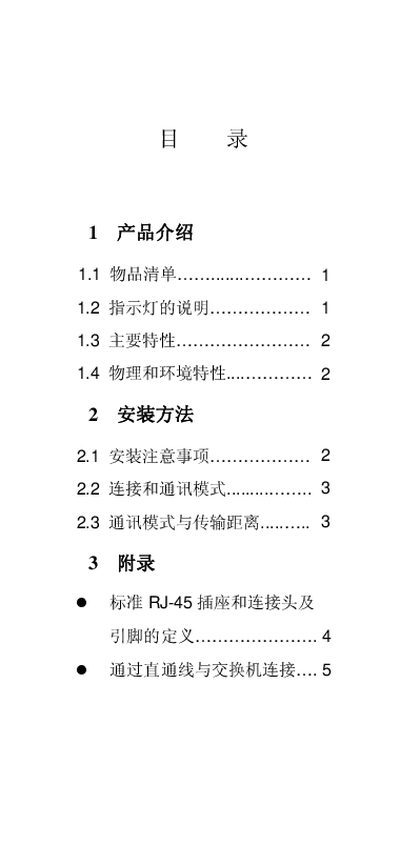

This manual introduces the TER850S/860S optical fiber transceiver, listing the items included in the package and describing the LED indicators for power, link, and 100M status. It outlines the main features such as IEEE802.3 compliance, 10/100Mbps auto‑negotiation, and support for full‑duplex transmission over distances greater than 2 km.
Installation instructions cover safety precautions, power connection, and wiring of the RJ‑45 and SC fiber ports. The document also details communication modes, transmission distance tables, and the pin definitions for the standard RJ‑45 connector. This manual is written in Chinese.
| AC Input Voltage | 100‑240VAC, 47/63Hz |
|---|---|
| DC Output | 10V 600mA |
| Operating Temperature | 0°C~55°C |
| Storage Temperature | -25°C~55°C |
| Humidity Range | 5%~90% (non‑condensing) |
| Dimensions (L×W×H) | 104 mm × 61 mm × 22 mm |
| Supported Data Rate | 10/100Mbps auto‑negotiation |
| Maximum Full‑Duplex Transmission Distance | over 2 km |
| Connectors | One SC fiber connector and one RJ45 port |
In full‑duplex mode the transceiver can transmit over distances greater than 2 km.
The unit accepts an AC input of 100‑240 VAC at 47/63 Hz and provides a DC output of 10 V at 600 mA.
It operates from 0 °C to 55 °C, can be stored from –25 °C to 55 °C, and tolerates 5 %–90 % humidity without condensation.
