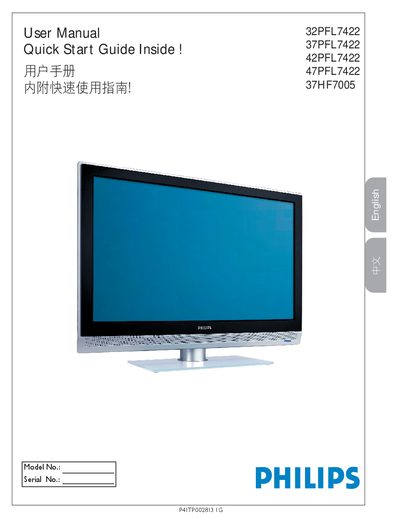

This is a user manual for PFL7422 series TVs, which introduces the functions and usage methods of the TV.
This Philips user manual provides step‑by‑step instructions for connecting and operating the 32PFL7422, 37PFL7422, 37HF7005, 42PFL7422 and 47PFL7422 LCD televisions. It includes safety guidelines, wiring diagrams for RF, composite, S‑Video, component and HDMI inputs, and details on using the remote control and on‑screen menus.
The guide also covers mounting options, maintenance, cleaning, and a comprehensive troubleshooting section that helps resolve common issues such as no power, no picture, or sound problems. Technical specifications and a glossary of terms are provided at the end of the document. This manual is written in Chinese.
| Aspect Ratio | 16:9 |
|---|---|
| Screen Technology | Progressive Scan, 3D Comb Filter, Noise Reduction, Smart Picture (5 modes) |
| Sound Output Power (RMS) | 2 × 5 W (Mono, Stereo, Smart Sound) |
| Sound Output Power (RMS) – High Power | 2 × 10 W (Mono, Stereo, Smart Sound) |
| HDMI Ports | 2 HDMI inputs |
| Component Video Inputs | CVI 1 and CVI 2 (YPbPr) |
| S‑Video / AV Input | AV – Video input, S‑Video, Audio L/R input, Audio L/R output, SPDIF output, Video output |
