3G3RV-ZV1 is a high-performance general purpose variable frequency drive launched by Panasonic. It has closed loop vector control, can realize DeviceNet communication, and is equipped with high-specification functions. Product features include: high starting torque/high-precision speed control with PG vector control; addition of torque control, zero-servo function, DROOP control, etc. makes 3G3RV-ZV1 products truly applicable to various industries; the ability to select the overload for the application; the entire series can use the DeviceNet communication card; by using a removable control loop terminal, the unit can be replaced in the wiring state, and maintenance/inspection is very convenient; it covers a wide range of motor capacities from 0.4 kW to 110 kW/300 kW.

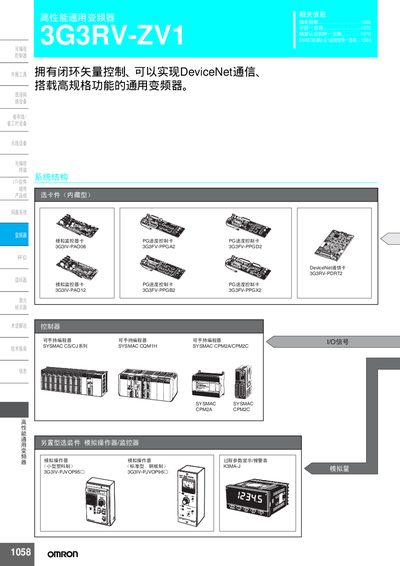

This document describes the high‑performance general‑purpose variable frequency drive 3G3RV‑ZV1, covering its control modes, wiring terminals, and optional modules such as DeviceNet communication cards and braking units. Detailed parameter tables allow users to configure speed, torque, and safety functions for a wide range of motor sizes.
Installation instructions include terminal layouts for main and control circuits, noise‑filter options, and guidelines for selecting the appropriate voltage level (200 V or 400 V) and motor capacity. The manual also lists part numbers for accessories like analog monitors, digital operators, and cooling fan power supplies. This manual is written in Chinese.
| Supported Voltage Levels | 200 V and 400 V |
|---|---|
| Maximum Applicable Motor Capacity per Model | 0.4 kW ~ 18.5 kW (200 V) / 22 kW ~ 300 kW (400 V) |
| DeviceNet Communication Card Model | 3G3RV-PDRT2 |
The DeviceNet communication card model 3G3RV‑PDRT2 is compatible.
It supports both 200 V and 400 V input levels.
