E6B2-C is an incremental encoder with an outer diameter of φ40. It can handle DC5-24V power supply voltage. This encoder has a simple Z-axis position display function. It can withstand an axial load of 30N in the radial direction and 20N in the thrust direction. It also has reverse connection and overload short-circuit protection circuits to improve reliability.

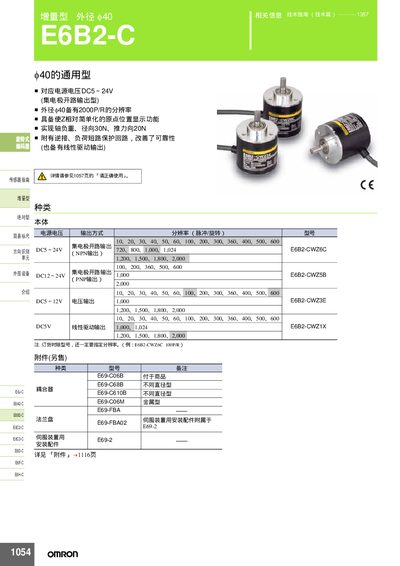

This datasheet describes the E6B2-C incremental encoder, covering its rated electrical values, output options, and mechanical dimensions. It includes details on power supply range, pulse specifications, current consumption, resolution options and protection features.
Installation guidance, safety notes, and accessory part numbers are also provided, along with recommended wiring practices and environmental limits for reliable operation in industrial automation applications. This manual is written in Chinese.
| Thrust load capacity | 20 N |
|---|---|
| Operating temperature range | -10 °C ~ +70 °C |
| Insulation resistance | ≥ 20 MΩ |
| Protection rating | IP50 |
| Weight (packed) | ≈ 100 g |
Use a cable length of 2 m or less for standard wiring; longer runs (up to 100 m) are allowed only with the linear‑drive output version.
The encoder can operate from –10 °C to +70 °C and can be stored from –25 °C to +85 °C.
The encoder offers NPN open‑collector (collector‑open) output, PNP open‑collector output, voltage output, and linear‑drive output options.
