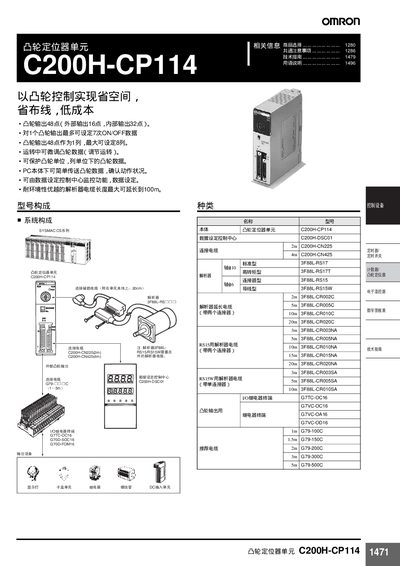

C200H-CP114 Cam Locator Unit is a cam control product that realizes space-saving, wiring-saving, and low-cost. It has 48 point cam outputs (16 external outputs and 32 internal outputs), each of which can be set with 7 ON/OFF data. In addition, 48 cam outputs can be set as 1 column, and up to 8 columns can be set.
This manual describes the Omron C200H-CP114 cam locator unit, a component of the SYSMAC CS series used in industrial automation. It explains the cam output configuration, data protection features, and how to transmit and adjust cam data via the PC interface.
The document includes performance specifications such as output points, electrical ratings, dimensions, and weight, as well as installation guidance for connection cables, resolver interfaces, and mounting requirements.
| External output points | 16 |
|---|---|
| Internal output points | 32 |
| External output switch capacity | DC24V 100mA |
| Maximum simultaneous ON points | 8 |
| Dimensions (W×H×D) | 34.5×130×101 mm |
| Weight | 350 g |
| Maximum resolver rotation speed | 800 c/min |
| Resolver response speed | 200 Hz (5 kHz sampling) |
| Internal consumption current | ≤0.3 A |
| External supply voltage/current | DC24V, ≥2 A |
The unit provides 16 external output points.
Up to 8 points can be ON simultaneously.
The unit measures 34.5 mm (W) × 130 mm (H) × 101 mm (D).
The cam locator unit weighs 350 g.
