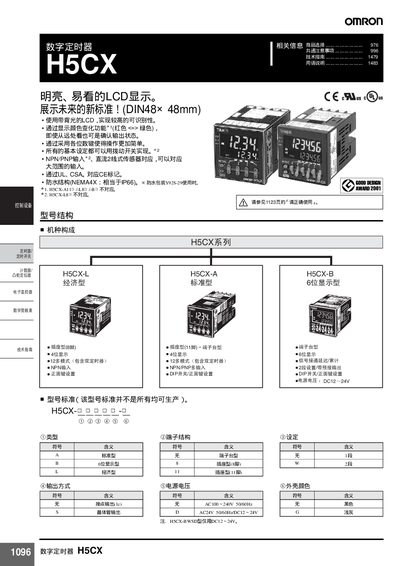

This manual describes the features and specifications of the Omron H5CX digital timer series, including LCD display options, input voltage ranges, and waterproof rating. It also outlines the different model variants such as H5CX‑A, H5CX‑L, and H5CX‑B.
The document provides step‑by‑step installation guidance, wiring diagrams, terminal configurations, and operating procedures. Safety precautions, environmental limits, and troubleshooting tips are included to ensure reliable use in industrial automation applications. This manual is written in Japanese.
| Input voltage | AC100‑240 V, 50/60 Hz |
|---|---|
| Power consumption | ≈2.4 W at DC12 V |
| Operating temperature | -10 °C to +55 °C |
| Ingress protection | NEMA 4X (IP66) |
The timer accepts AC input from 100 V to 240 V at 50/60 Hz.
Approximately 2.4 W.
It is rated NEMA 4X, equivalent to IP66.
The device operates from –10 °C up to +55 °C.
