SMS0501C LCD module is a digital pen segment type LCD module that can display 5 digits and 2 segments of prompts. It is widely used in handheld electronic scales, intelligent display meters and other devices.
The SMS0501C LCD display module provides a 5‑digit numeric display plus two indicator symbols. It is designed for portable electronic devices and smart instrument panels, offering a wide voltage range and low power draw.

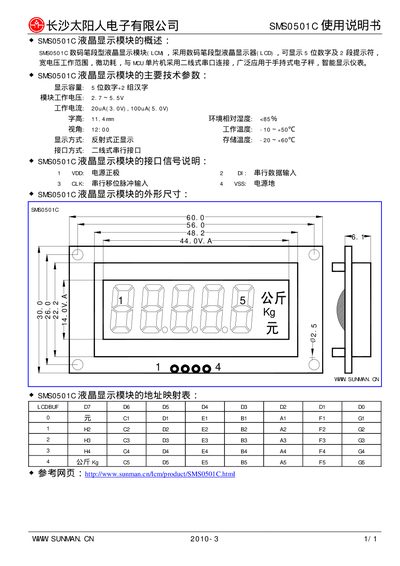

The module uses a two‑wire serial interface for communication with an MCU, and its physical dimensions are 60.0 mm × 56.0 mm × 48.2 mm. Detailed pin‑mapping and signal definitions are provided for easy integration. This manual is written in Chinese.
| Display capacity | 5 digits + 2 symbols |
|---|---|
| Operating voltage | 2.7~5.5 V |
| Operating current (3.0 V) | 20 µA |
| Operating current (5.0 V) | 100 µA |
| Character height | 11.4 mm |
| Contrast | < 5 % |
| Viewing angle | 120° |
| Operating temperature | -10~+50 °C |
| Display type | Reflective |
| Storage temperature | -20~+70 °C |
| Interface | Two‑wire serial interface |
The module operates from 2.7 V to 5.5 V.
It can display 5 numeric digits plus 2 indicator symbols.
It uses a two‑wire serial interface for communication with an MCU.
The viewing angle is 120 degrees.
