SMCGS16/SMCGS24 16/24-port 10/100/1000Mbps non-managed switch is a desktop-class Gigabit Ethernet switch with high performance, supports half/full-duplex self-adaptive, MDI/MDI-X auto-switching port, compatible with IEEE802.3-2002, store-and-forward switching mechanism ensures error-free transmission, half/full-duplex flow control ensures no packet loss under heavy load conditions, plug and play-no configuration required, desktop or rack-mount design.

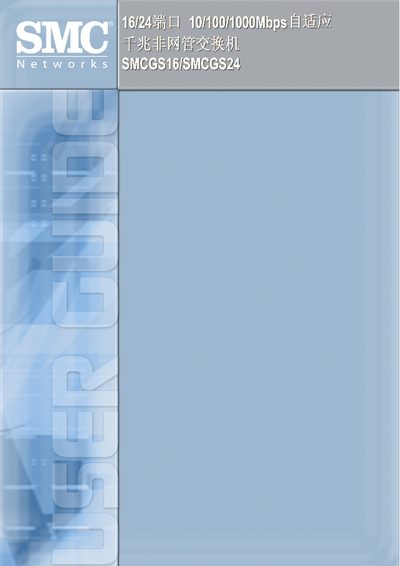

The manual provides an overview of the EZ Switch 10/100/1000 series non‑managed switches, describing key features such as auto MDI/MDI‑X, LED status indicators, and desktop or rack‑mount options. It includes a detailed introduction, front‑panel layout, LED meanings, and rear‑panel connections.
Installation instructions cover unpacking, checking the packing list, selecting a suitable location, mounting on a desk or standard 19‑inch rack, and wiring guidelines. The document also offers troubleshooting tips, product specifications, and compliance information. This manual is written in Chinese.
| Port count | 16 (SMCGS16) or 24 (SMCGS24) 10/100/1000Mbps RJ‑45 |
|---|---|
| Supported standards | IEEE 802.3‑2002 Ethernet |
| Dimensions | 330 × 204 × 44 mm |
| Weight | 2.0 kg (SMCGS16) / 2.2 kg (SMCGS24) |
| Power consumption | 15.8 W (SMCGS16) / 24.2 W (SMCGS24) |
| Operating temperature | 0 °C – 40 °C |
| Supported cable types | 10BASE‑T: 100 Ω 3‑class+ twisted pair; 100BASE‑TX: 100 Ω 5‑class+; 1000BASE‑T: 100 Ω 5‑class, 5e or 6 twisted pair |
When a port runs at 1000 Mbps the LED will be steady green.
Use 5‑class, 5e or 6 twisted‑pair cable for 1000BASE‑T connections.
Yes, the switch can be installed in a standard 19‑inch rack using the supplied rack kit.
