The SMS0810B LCD display module is a digital pen segment LCD module that can display 8-digit numbers, 15 segment prompts, and 1 decimal point. It has a wide voltage operating range and low power consumption, and is widely used in smart heat meters and other applications.
The Sunman SMS0810B is a matrix LCD display module capable of showing 8 digits, 15 indicator symbols and 3 decimal points. It operates with low power consumption and can be driven by a micro‑controller via a three‑wire serial interface.

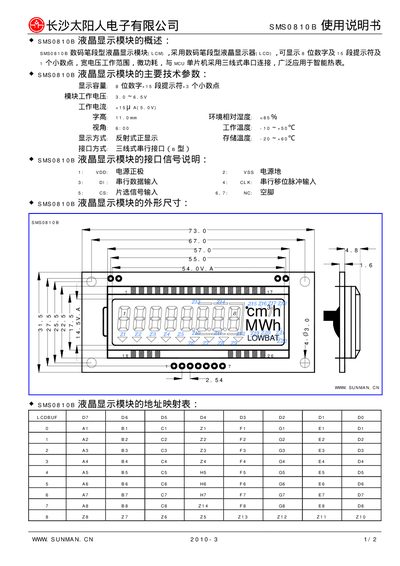

The document lists the module's main specifications such as a 5.0 V supply voltage with current below 15 mA, operating temperature range –10 °C to 50 °C, viewing angle of about 120°, and a three‑wire serial interface (Cg type). Physical dimensions and the LCD address mapping table are also provided. This manual is written in Chinese.
| Supply voltage | 5.0 V |
|---|---|
| Maximum supply current | <15 mA |
| Operating temperature range | -10 °C ~ 50 °C |
| Interface type | Three‑wire serial (Cg type) |
It uses a three‑wire serial interface (Cg type).
The module operates from a 5.0 V supply.
It can operate between –10 °C and 50 °C.
