SMS0880 LCD display module is a module using digital pen segment LCD display, can display 8 digits and 32 segments prompt, low power consumption, with MCU single chip microcomputer using three-wire serial port connection, widely used in language classroom.
The SMS0880 is an LCD display module (LCM) that shows 8‑bit data across 32 segments. It is intended for integration with micro‑controller based equipment and operates from a 4.8 V to 5.2 V supply.

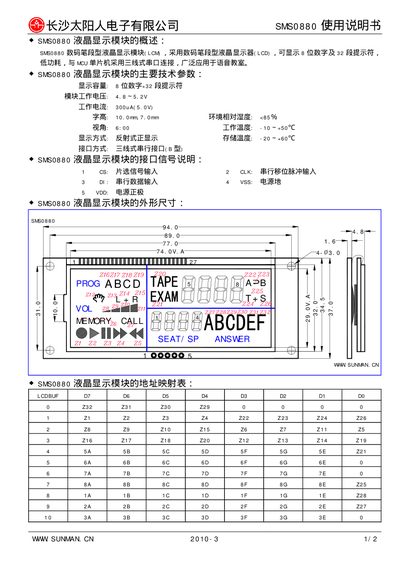

The manual lists the electrical characteristics, pin definitions (CS, CLK, DI, VSS, VDD), display size (10 mm × 7 mm), and operating temperature ranges, as well as the wiring diagram and segment mapping needed to drive the module. This manual is written in Chinese.
| Display size | 10.0 mm × 7.0 mm |
|---|
The module uses five pins: CS, CLK, DI, VSS, and VDD.
The display measures 10.0 mm by 7.0 mm.
