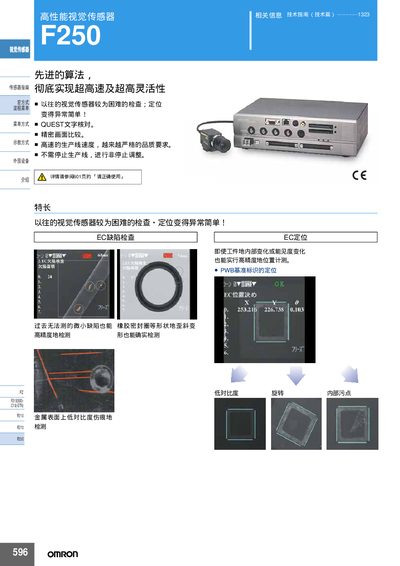

F250 high-performance vision sensor can achieve ultra-high speed and ultra-high flexibility through advanced algorithms, including EC defect inspection, QUEST text verification, and precision image comparison.
This manual describes the Omron F250 series vision sensor, highlighting its high‑speed imaging, precise positioning, and flexible QUEST text‑matching features. It covers controller options, lighting accessories, and integration with various cameras.
The document includes detailed performance data, environmental limits, power requirements, and connection interfaces, as well as safety precautions and recommended installation steps for reliable operation in industrial environments. This manual is written in Chinese.
| Dimensions (W×H×D) | 270 mm × 81 mm × 197 mm |
|---|---|
| Maximum Operating Temperature | 0 °C to +50 °C |
| Storage Temperature Range | -25 °C to +65 °C |
| Operating Humidity | 35 % to 85 % RH |
| Power Supply | DC 20.4 V – 26.4 V |
| Maximum Number of Images | 35 |
| Weight | 4.0 kg (total, 3.1 kg body) |
| Ethernet Interface | 10Base‑T |
| Serial Communication | RS‑232C / RS‑422 |
The sensor can operate from 0 °C up to +50 °C.
The controller measures 270 mm wide, 81 mm high, and 197 mm deep.
It supports Ethernet 10Base‑T and serial RS‑232C/RS‑422 interfaces.
