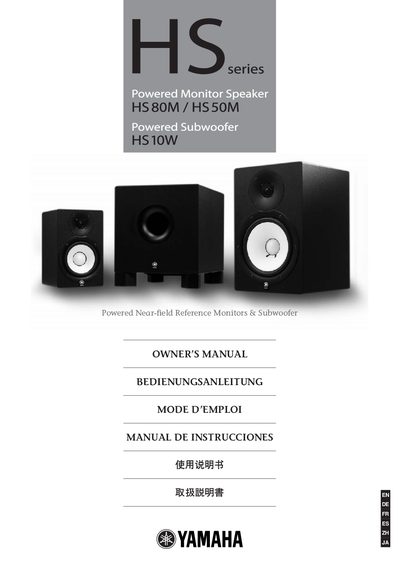

This document is the owner’s manual of Powered Near-field Reference Monitors & Subwoofer
The manual explains safety precautions, proper installation, and handling to prevent electric shock, fire, or damage, including keeping the unit away from water, blocking ventilation, and using a grounded plug.\n\nIt describes the features of the HS50M, HS80M powered speakers and the HS10W subwoofer, their dimensions, power ratings, input/output connectors, EQ and low‑cut controls, and provides wiring diagrams and performance graphs for optimal sound setup.
| Type | Biamp 2‑way Powered speaker (HS50M/HS80M), Powered Subwoofer (HS10W) |
|---|---|
| Crossover Frequency | 3 kHz (HS50M/HS80M), 2 kHz (HS10W) |
| Overall Frequency Response | 55 Hz‑20 kHz (HS50M), 42 Hz‑20 kHz (HS80M), 30 Hz‑180 Hz (HS10W) |
| Dimensions (W × H × D) | 165 × 268 × 222 mm (HS50M), 250 × 390 × 332 mm (HS80M), 300 × 350 × 386 mm (HS10W) |
| Total Output Power (dynamic) | 70 W (HS50M), 120 W (HS80M), 150 W (HS10W) |
Each unit has a balanced XLR‑3‑31 connector and a balanced PHONE connector for input.
Use the LOW CUT switch, which offers FLAT, 80 Hz, or 100 Hz settings with a 12 dB/octave slope.
