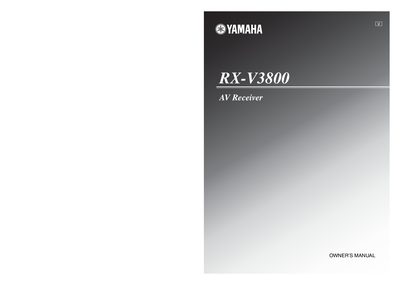

Yamaha RX-V3800 AV Receiver Owner's Manual

Brand: Yamaha
Category: Audio-Video Decoder
Document type: User Manual
Language: English
Pages: 169
File format: PDF
File size: 3.7 MB
Published: 17 October, 2011
Updated: 29 September, 2023
MD5 checksum: A75BBEE7EFBD1E865FA26ACDFC1D74B1
PDF: Yamaha RX-V3800 AV Receiver Owner's Manual PDF

About this manual

This manual provides safety guidelines, installation instructions, and detailed operating procedures for the Yamaha RX-V3800 AV receiver. It includes information on proper ventilation, grounding, and handling to prevent electric shock or fire.

The guide also covers basic and advanced operation, including speaker setup, sound field programs, network/USB features, and troubleshooting tips, along with technical specifications and warranty information.

What's inside

Important Safety Instructions
Installation and Ventilation
Connections
Basic Operation
Advanced Operation
Sound Field Programs
Network/USB Features
Troubleshooting
Specifications
Glossary

Specifications

Front channel RMS output power	140 W + 140 W
Center channel RMS output power	140 W
Surround channel RMS output power	140 W + 140 W
Surround back channel RMS output power	140 W + 140 W

Frequently asked questions

What ventilation space is required around the receiver?

Leave at least 30 cm on the top and 20 cm on the left, right, and back sides of the unit.

What are the RMS output power specifications for each channel?

The receiver delivers 140 W per channel for front, center, surround, and surround‑back speakers.
