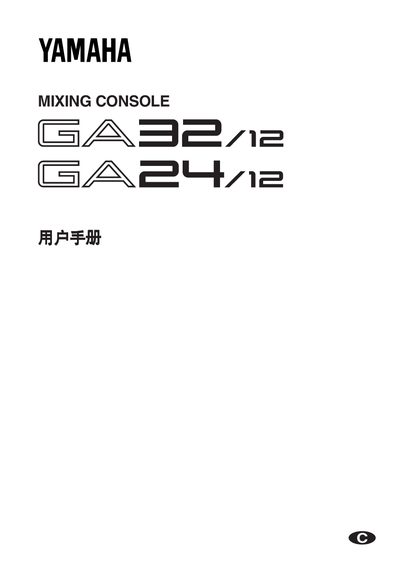

This manual covers safety precautions for using the GA32/12 and GA24/12 mixing consoles, including warnings about high temperature, humidity, and proper handling. It explains the front and rear control panels, the functions of each knob, switch, and connector, and provides guidance on power requirements and grounding.
The document also describes the GA split function, input and output routing, EQ and attenuation controls, and lists the technical specifications such as channel counts, gain ranges, and filter settings. Users can refer to the sections on AUX return, MATRIX output, and monitoring for detailed setup instructions. This manual is written in Chinese.
| Gain control range | 10 dB – 34 dB |
|---|---|
| EQ bands | 4 (HIGH, HI‑MID, LO‑MID, LOW) |
| High‑pass filter cutoff | 80 Hz |
The gain can be adjusted from 10 dB up to 34 dB.
The console includes four EQ bands: HIGH, HI‑MID, LO‑MID, and LOW.
