The DPM-800 DC Digital Display Table is a digital display table designed with integrated circuits. The front panel display can display mother bus DC current or voltage values. It has the characteristics of high accuracy, stable performance, good linearity and fast response speed.

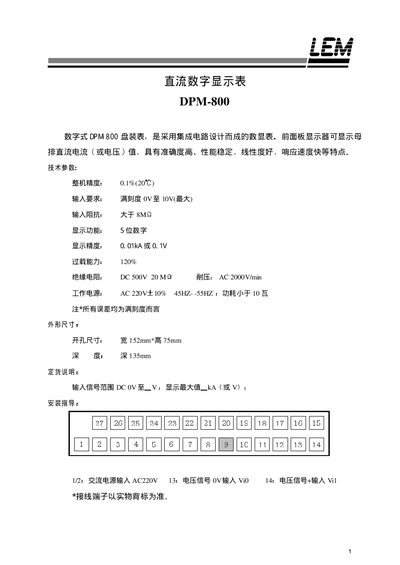

This manual describes the technical specifications of the LEM DPM-800 digital display table, including accuracy, input range, impedance, display resolution, overload capacity, insulation voltage, power consumption and physical dimensions. It also lists the wiring terminal layout and signal connections.
Installation and safety sections emphasize proper wiring before powering the unit, avoiding opening the case, and disconnecting AC220 V power immediately if a fault occurs. Users are instructed to contact the manufacturer for any repair or troubleshooting needs. This manual is written in Chinese.
| Accuracy | 0.1% (full scale) |
|---|---|
| Input range | 0 V to 10 V (max) |
| Input impedance | >8 MΩ |
| Display digits | 5‑digit |
| Display accuracy | 0.01 kA or 0.1 V |
| Overload capacity | 120 % |
| Insulation voltage | DC 500 V, AC 2000 V |
| Power supply | AC 220 V ±10 %, 45‑55 Hz, <10 W |
| Mounting dimensions | 152 mm × 73 mm × 135 mm (W × H × D) |
Connect all wiring first, then turn on the AC 220 V power supply.
Immediately disconnect the AC 220 V power, record the fault, and contact the manufacturer.
No, the case must not be opened; contact the manufacturer for any repair or troubleshooting.
