SMS0823 liquid crystal display module is a digital pen segment type LCD display, can display 8 bit digital and 26 segment prompt and 4 decimal point, low power consumption, with MCU single chip microcomputer using three line serial interface, widely used in intelligent meter.
The SMS0823 is a digital LCD display module that can show 8 digits, 22 segment characters and 4 dots. It is designed for low‑power operation and connects to an MCU via a three‑wire serial interface.

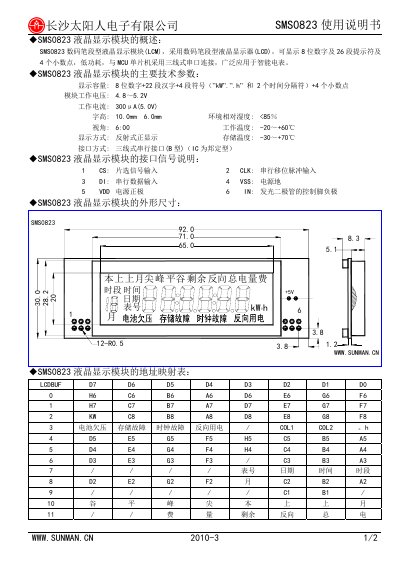

The manual lists the display parameters, electrical characteristics, pin definitions, character set and timing diagram, giving all the information needed to integrate the module into devices such as smart meters. This manual is written in Chinese.
| Current consumption | 300 µA (5.0 V) |
|---|---|
| Dimensions | 10.0 mm × 6.0 mm |
The pins are CS (chip select), CLK (clock), DI (data), VSS (ground), VDD (power) and IN (input).
