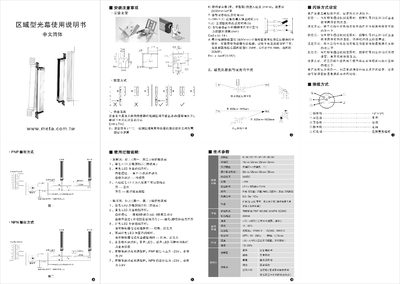

This manual provides safety guidelines, installation instructions, and operating procedures for the Meta area‑type light curtain. It explains LED indicators, self‑check functions, and alarm output settings (PNP/NPN) to ensure safe machine operation.
Technical parameters such as detection distance, power consumption, response time, environmental limits, and output specifications are listed, along with recommended mounting distances and anti‑reflection measures. This manual is written in Chinese.
| Supply Voltage | 24 VDC |
|---|---|
| Detection Distance | 0.5–5 m / 10 m |
| Minimum Detectable Object Size | 20 mm / 25 mm / 30 mm / 35 mm |
| Operating Humidity | 15 % – 85 % |
| Response Time | < 0.5×光轴数 + 5 ms |
