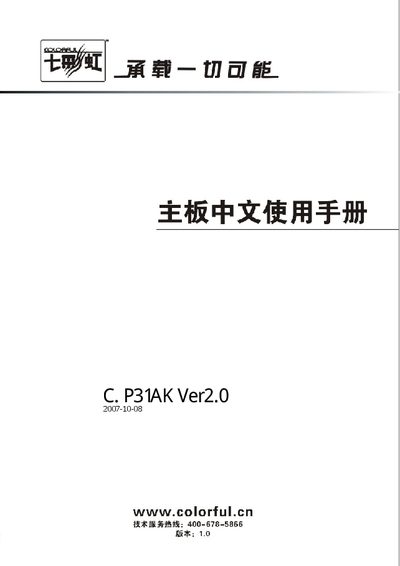

This is a manual of C. P31AK Ver2.0 motherboard of Colorful, which introduces the features, specifications, installation, driver installation, BIOS settings and other contents of the motherboard in detail.
The C. P31AK Ver2.0 is an ATX‑form factor motherboard based on the Intel P31+ICH7 chipset, supporting LGA775 CPUs and DDR2 memory. It offers multiple expansion slots, integrated Gigabit Ethernet, 8‑channel audio, and a range of USB and SATA interfaces.
This manual covers the contents of the packaging, safety precautions, hardware installation, BIOS (BIDS) configuration, driver installation, and troubleshooting. It also includes a parts list, connector pinout diagrams, and contact information for technical support. This manual is written in Chinese.
| Chipset | Intel P31+ICH7 |
|---|---|
| CPU Socket | LGA775, supports Intel Core2 Quad/Extreme/Duo, Pentium 4, Celeron |
| Memory | 2× DDR2 667/800 MHz DIMM slots |
| SATA Interfaces | 4× SATA2 + 1× eSATA |
| USB Ports | 8× USB 2.0 (4 internal, 4 external) |
| Network | Integrated Gigabit Ethernet (10/100/1000 Mbps) |
