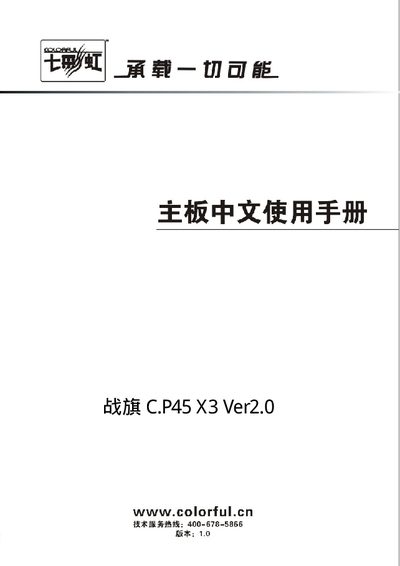

C.P45 X3 Ver2.0 motherboard user manual, covering hardware installation, driver installation, and BIOS settings.
This manual provides step‑by‑step instructions for assembling, installing drivers, and configuring the Colorful C.P45 X3 Ver2.0 motherboard. It includes a table of contents, safety notices, and detailed sections on BIOS settings, hardware connections, and troubleshooting.
The document also lists the motherboard’s key specifications, supported CPUs, memory types, expansion slots, and connectivity options, as well as contact information for technical support and BIOS upgrade procedures. This manual is written in Chinese.
| Chipset | Intel P45+ICH10 |
|---|---|
| CPU Socket | LGA775, supports Intel Core 2 Duo, Pentium, Celeron |
| Memory Slots | 4 x 240‑pin DDR2 DIMM, dual‑channel, 667/800/1066 MHz |
| SATA Ports | 6 x SATA2 (3 Gb/s) interfaces |
| USB Ports | 10 x USB 2.0 (including 1 internal) |
| Audio | 8‑channel onboard audio |
The package contains the C.P45 X3 Ver2.0 motherboard, a SATA data cable, a power‑to‑SATA adapter, an IDE ribbon cable, a driver CD, a warranty card, the Chinese user manual, and a rear‑panel I/O shield.
Download the BIOS file and flashing utility from the Colorful website, copy them to a floppy or USB drive, boot into DOS mode, run the appropriate flashing command (e.g., AWDFLASH for Award BIOS or AFUDOS for AMI BIOS), and follow the on‑screen prompts to complete the upgrade.
Visit the Colorful official website (http://www.colorful.cn) or the Colorful forum (http://bbs.colorful.cn) for drivers, manuals, and technical guidance, or call the customer service hotline 400‑678‑5866.
