This is the manual of a drum auger. It introduces the features and characteristics of the product, safety precautions, operating steps, maintenance and maintenance.

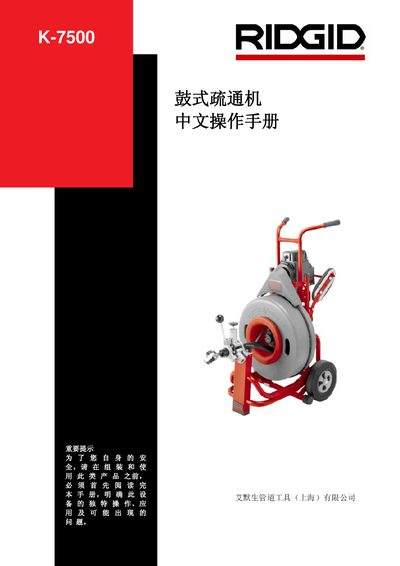

The RIDGID K-7500 drum dredging machine is a portable pipe‑cleaning tool designed for 4"‑10" pipe diameters. The manual provides safety warnings, technical parameters, standard configurations, and detailed assembly instructions.
It also explains operating procedures such as automatic and manual rope feed, special cleaning techniques, maintenance steps, fault diagnosis, and warranty information, ensuring safe and effective use of the equipment. This manual is written in Chinese.
| Motor voltage | 115V/60Hz, 230V/60Hz |
|---|---|
| Motor power | 600 W |
| Motor current | 6.0 A |
| Weight (machine) | 116 lb (53 kg) |
| Dimensions (W × L) | 21 in × 31 in |
| Pipe diameter range | 4" to 10" |
Insert the rope end into the drum’s tail‑rod connector, then rotate a screwdriver 180° in the socket to lock it in place; reverse the rotation to release.
The machine is rated for pipe diameters from 4 inches up to 10 inches.
