The SH-MZ1200 is a 4-channel DJ mixer from Panasonic, which can be used with the SL-DZ1200 digital turntable to provide a rich input and output, and is equipped with a 3-band equalizer, supports CUE and MONITOR, and can be connected to external effects. The operation is flexible and the performance is reliable.

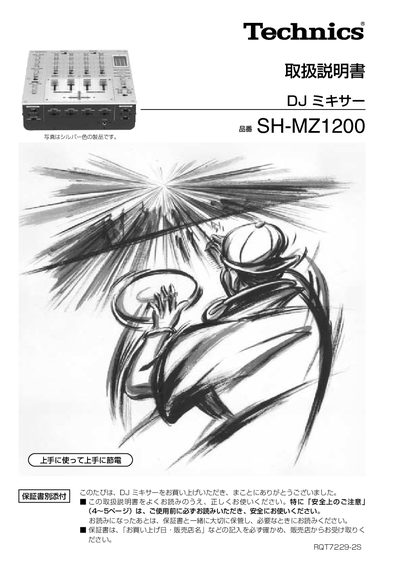

This manual provides safety guidelines, installation steps, and detailed descriptions of all inputs, outputs, and control functions for the Technics SH‑MZ1200 DJ mixer. It also includes wiring diagrams, accessory lists, and service information.
The document covers the mixer’s 12 input channels, 9‑position cross‑fader curves, 45 mm fader travel, power requirements, and how to use the SEPARATE OUT function to split front‑ and rear‑output signals. This manual is written in Japanese.
| Number of inputs | 12 (CD/LINE, PHONO, MIC, digital) |
|---|---|
| Power input | AC IN terminal |
| Stereo pin cable polarity | White = Left (L), Red = Right (R) |
| Separate OUT function | Front/rear split of CH1‑CH2 and CH3‑CH4 |
It provides 12 inputs covering CD/LINE, PHONO, MIC and digital sources.
When enabled, it routes CH1‑CH2 to the front outputs and CH3‑CH4 to the rear outputs.
White plugs connect to the left (L) channel and red plugs to the right (R) channel.
