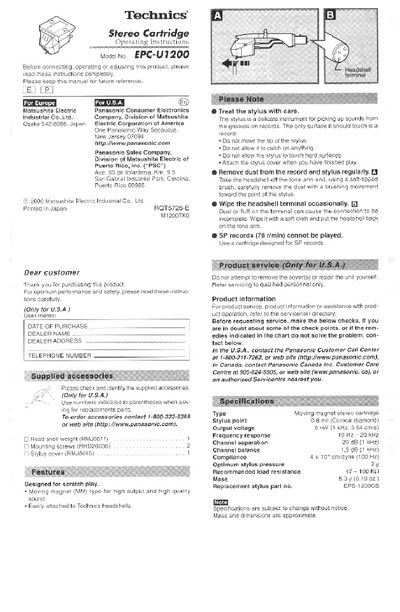

This document provides operating instructions for the Panasonic EPC-LI71200 Moving Magnet (MM) type stereo cartridge. It includes guidelines for handling the delicate stylus to ensure high-quality sound reproduction and safety during use.
The manual details the installation process for attaching the cartridge to a headshell, including wiring connections based on color coding. It also covers maintenance procedures such as cleaning dust from records and terminals, adjusting tone arm overhang, and replacing the stylus after approximately 500 hours of use.
| Stylus type | Moving magnet (MM) type |
|---|---|
| Frequency response | 10 Hz ~ 20 KHz |
| Channel separation | 20 dB (1 KHz) |
| Compliance | 4810" cirnvayne (100 Hz) |
| Optimum stylus pressure | 2g |
| Recommended load resistance | 47— 100 Kaa |
The stylus should be replaced after about 500 hours of use.
The optimum stylus pressure is 2 grams.
