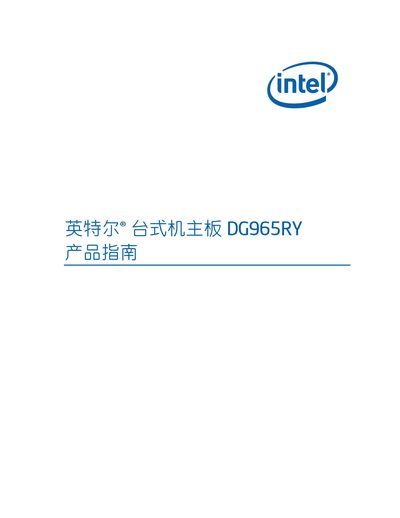

This document describes the features and characteristics of the Intel® DG965RY desktop board.
This product guide is intended for qualified technicians who need detailed information about the Intel DG965RY desktop motherboard. It covers board layout, component installation, BIOS update procedures, and regulatory compliance details.
The guide includes sections on motherboard functions, installation and replacement of components, BIOS update methods, error messages and beep codes, hardware management features, power management, supported operating systems, and compliance with EMC and safety standards. This manual is written in Chinese.
| Form factor | ATX (320.04 mm × 243.84 mm) |
|---|---|
| Processor socket | LGA775 |
| Maximum system memory | 8 GB DDR2 |
| Memory slots | Four 240‑pin DDR2 DIMM sockets |
| Chipset | Intel G965 Express |
| Integrated graphics | Intel Graphics Media Accelerator X3000 (GMA X3000) |
| USB 2.0 ports | Up to 10 ports (6 rear, 4 via internal connectors) |
| SATA ports | Four SATA III (3.0 Gb/s) ports |
| LAN controller | Intel 82566DC Gigabit Ethernet |
| BIOS flash memory | 8 Mbit |
| Power management | Supports ACPI |
It uses an LGA775 socket for Intel processors.
The board supports up to 8 GB of DDR2 system memory.
The motherboard provides up to ten USB 2.0 ports—six on the rear panel and four via internal connectors.
It includes an Intel 82566DC Gigabit Ethernet controller.
