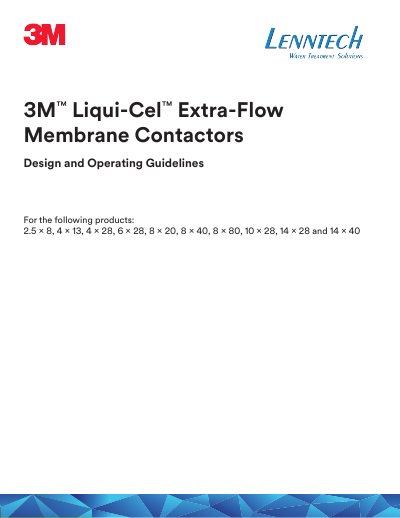

Design and operating guidelines for 3M Liqui-Cel Extra-Flow membrane contactors, covering safety, installation, startup, maintenance, and troubleshooting.
This guide provides comprehensive information for the design, selection, and safe operation of 3M Liqui-Cel Extra-Flow membrane contactors. It includes technology description, membrane selection, gas stripping techniques, and general system design recommendations.
Key sections cover warnings and precautions, detailed startup and shutdown procedures, routine maintenance, expected service life, storage and cleaning practices, chemical compatibility, and troubleshooting tips to ensure reliable performance in water treatment applications.
| Maximum safe liquid temperature | 35 °C (95 °F) |
|---|---|
| Maximum storage temperature | 49 °C (120 °F) |
| Maximum operating pressure | Do not exceed limits provided in guide |
Do not exceed the maximum operating pressure or temperature limits, keep gas/vacuum ports open, use proper pressure relief valves, ground electrical connections, avoid hot surfaces, and secure the contactor firmly.
Store the contactors in sealed bags or shrink‑wrap, keep them in the original opaque box, and maintain a temperature below 49 °C (120 °F) with humidity under 60 %.
