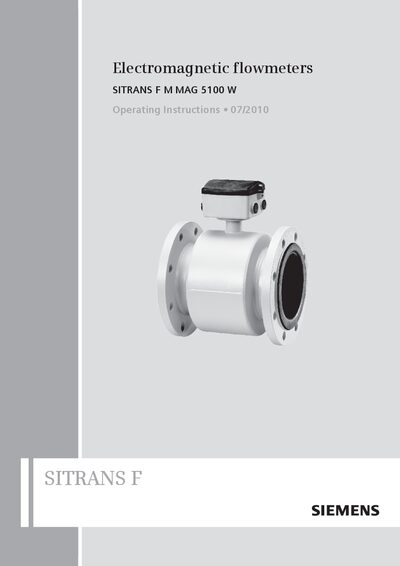

Siemens SITRANS F M MAG 5100 W Operating Instructions

Operating instructions for the Siemens SITRANS F M MAG 5100 W electromagnetic flowmeter, covering installation, use, and maintenance.

Brand: Siemens
Document type: User Manual
Language: English
Pages: 66
File format: PDF
File size: 4.6 MB
Published: 28 September, 2026
Updated: 28 September, 2026
MD5 checksum: 12C8423F62FDAADBF6A5BBF6478F9F76
PDF: Siemens SITRANS F M MAG 5100 W Operating Instructions PDF

About this manual

This manual provides detailed guidance for installing, connecting, and operating the SITRANS F M MAG 5100 W flowmeter. It is intended for qualified personnel who will perform mechanical installation, electrical wiring, parameter configuration, and commissioning.

The document also includes safety notes, service and maintenance procedures, troubleshooting FAQs, and technical data such as measuring principle, excitation frequency, and pipe size ranges.

What's inside

Introduction
Safety notes
Description
Installing/Mounting
Connecting
Service and maintenance
Troubleshooting/FAQs
Technical data
Appendix

Specifications

Measuring principle	Electromagnetic induction
Excitation frequency	50 Hz/60 Hz (Mains supply)
IP protection rating	IP67

Frequently asked questions

What type of cable is required for IP67 protection?

Use cables that meet the required specifications to guarantee the IP67 degree of protection.

Can the flowmeter be installed in a hazardous area?

Special requirements apply for installation in hazardous locations; follow the safety notes in the manual.

Is remote installation allowed for this flowmeter?

Yes, remote installation is permitted; the manual notes that remote installation is only for certain models.
