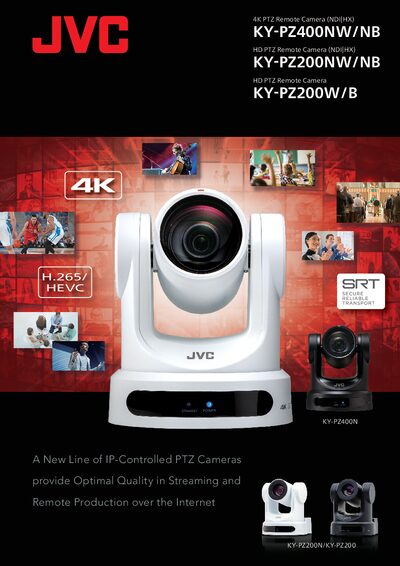

JVC KY-PZ400N PTZ remote camera datasheet detailing specs, video codecs, zoom, power options, and remote control features.
The KY-PZ400N is a 4K PTZ remote camera equipped with a 1/2.5‑inch progressive CMOS sensor delivering 8.51 M effective pixels. It offers 12× optical zoom (4.4 mm‑52.8 mm) and up to 20× zoom in the KY‑PZ400 series, with a horizontal angle of view of 71°.
The camera supports H.265, H.264 and MJPEG codecs, dual‑stream video, and multiple streaming protocols (NDI|HX, RTSP/RTP, RTMP/RTMPS, SRT). Remote operation is possible via the JVC RM‑LP100 controller (up to 100 cameras) or standard Pelco protocols. Power can be supplied by a 12 V DC adapter or PoE (802.3af), and the unit measures 142 × 165 × 169 mm and weighs about 1.7 kg.
| Image sensor | 1/2.5‑inch Progressive CMOS, 8.51 M effective pixels |
|---|---|
| Optical zoom | 12× (4.4 mm‑52.8 mm) |
| Video codecs | H.265 / H.264 / MJPEG |
| Input voltage | DC 12 V (adapter) or 37‑57 V PoE (802.3af) |
| Dimensions (W×H×D) | 142 mm × 165 mm × 169 mm |
| Net weight | Approx. 1.7 kg |
| Preset capacity | 255 presets |
It supports H.265, H.264 and MJPEG video codecs.
The camera can store up to 255 presets.
The JVC RM‑LP100 controller can operate up to a hundred KY‑PZ400/PZ200 series cameras, and standard Pelco protocols are also supported.
It can be powered by a 12 V DC adapter or via PoE (802.3af) with 37‑57 V input.
