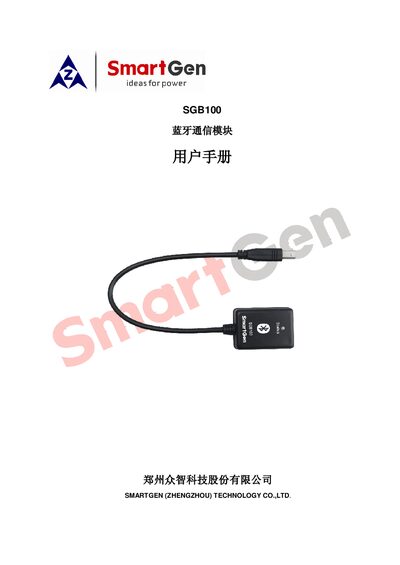

User manual for the SmartGen SGB100 Bluetooth communication module, covering features, specs, software and operation steps.
The SGB100 Bluetooth communication module, produced by SmartGen, provides wireless BLE 4.1 connectivity for generator set controllers. It works with the iGMPA6 Android app to configure parameters, monitor status, and manage data.
The manual describes the module’s performance, technical specifications, required Android software, and step‑by‑step procedures for connecting, configuring, monitoring, calibrating and handling alerts, as well as safety precautions. This manual is written in Chinese.
| Supply method | USB (<50 mA) |
|---|---|
| Interface type | B‑type USB (male) |
| Communication method | BLE low‑power |
| Communication distance | 10 m (no obstacles) |
| Dimensions | 51.3 mm × 36.1 mm × 17.6 mm (cable 30 cm) |
| Weight | ≈ 40 g |
| Operating temperature | -25 °C to +70 °C |
| Relative humidity | 20 %–93 % |
Connect the SGB100 module to the controller using the USB port.
The app requires Android 4.3 or later and a device that supports Bluetooth 4.1.
The module can communicate up to 10 m in an unobstructed environment.
After the app connects to the Bluetooth device, normal communication is established after 5–7 seconds.
