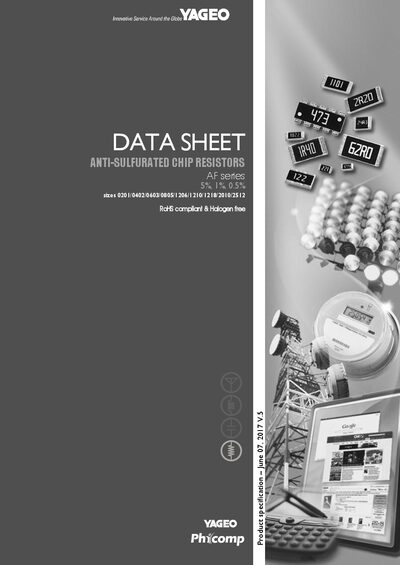

Specification sheet for Yageo AF series anti‑sulfurated surface‑mount chip resistors covering sizes 0201‑2512.
The AF series from Yageo provides anti‑sulfurated surface‑mount chip resistors in sizes from 0201 to 2512, with tolerance options of 5 %, 1 % and 0.5 %. The devices are RoHS compliant, halogen‑free and qualified to AEC‑Q200 for use in industrial, power, networking, automotive and high‑end computer applications.
Key features include superior resistance to sulfur‑containing atmospheres, low moisture sensitivity (MSL 1), and a range of packaging options such as paper taping reels and embossed plastic reels. Detailed electrical characteristics, dimensions, and test requirements are provided for each size and tolerance class.
| Size range | 0201 to 2512 |
|---|---|
| Tolerance options | ±0.5 %, ±1 %, ±5 % |
| Rated current | 0.5 A to 2.0 A |
| Resistance range | 1 Ω to 10 MΩ |
| Temperature coefficient of resistance | ±200 ppm/°C |
| RoHS compliance | Yes |
AF resistors are offered with tolerances of ±0.5 %, ±1 % and ±5 %.
An AF0805 resistor can handle a maximum working voltage of 150 V.
Yes, the AF series is RoHS compliant and halogen‑free.
