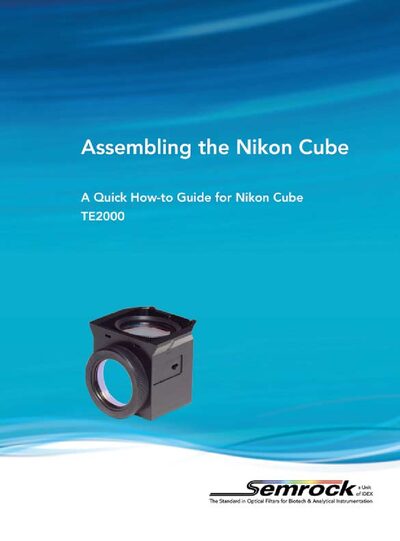

Step-by-step instructions for assembling the Nikon N TE Cube, including filter installation and retaining ring placement.
This manual provides detailed, step‑by‑step instructions for assembling the Nikon N TE Cube, covering the placement of the Exciter, Dichroic and Emitter filters and the use of retaining rings and spring clips.
The procedure starts with installing the Semrock filter set, then orients the cube housing, positions each filter with the correct side up, secures them with clips and retainers, and finishes by threading the Exciter retaining ring to complete the assembly.
The Dichroic is placed on the diagonal mounting surface with its reflective side down.
Insert the inner ring with the ribbed side up into the threaded collar, then secure the outer collar.
Insert the Emitter into its housing with the arrow pointing up and hand‑tighten the retaining ring.
