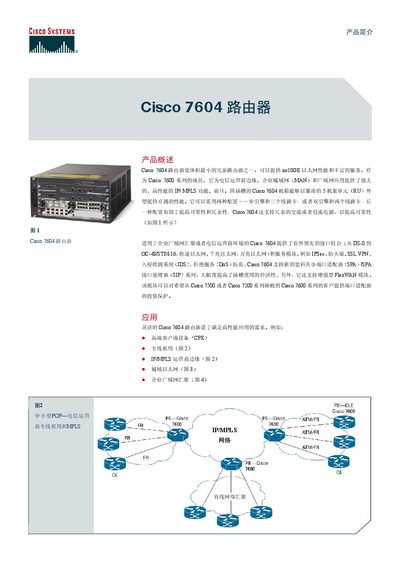

The Cisco 7604 router is a compact, high-performance IP/MPLS router that provides nx10GE Ethernet performance and rich services for telecom operator edge, enterprise metro area network (MAN), and wide area network (WAN) applications.
Cisco 7604 路由器是体积最小的冗余路由器之一，提供 nx10GE 以太网性能和丰富的服务，适用于电信运营商边缘、企业城域网、MAN 和广域网应用。它采用紧凑的 5RU 机箱，可配置单引擎或双引擎以及多种线路卡组合，以提升可靠性和冗余性。\n\n该路由器支持 1+1 电源保护（交流或直流），符合 NEBS 三级标准，提供从 DS-0 到 OC-48/STM-16 的接口组合，并兼容多种服务模块（如 IPSec 防火墙、SSL VPN、IDS、DoS 防范）。文档中列出了详细的技术规格、订购信息以及思科的服务与支持渠道。 This manual is written in Chinese.
| Form factor | 5RU 8.75英寸 机箱 |
|---|---|
| Power requirements | 110到240 V AC -48到-60 VDC |
| MTBF | 7年 |
| Operating temperature | 32‑104 °F (0‑40 °C) |
| Storage temperature | -4‑149 °F (-20‑65 °C) |
| Operating humidity | 10‑85 % non‑condensing |
| Installation height range | -500 to 6500 ft |
| Minimum IOS version | Cisco IOS 12.2.18SXE |
The Cisco 7604 supports 1+1 power protection with either AC or DC power supplies.
The chassis has four slots that can be configured as two engine slots and two interface slots, or one engine slot and three interface slots.
The minimum required IOS version is Cisco IOS 12.2.18SXE.
Ordering information is listed in Table 2 of the document and can also be accessed via the Cisco ordering website.
