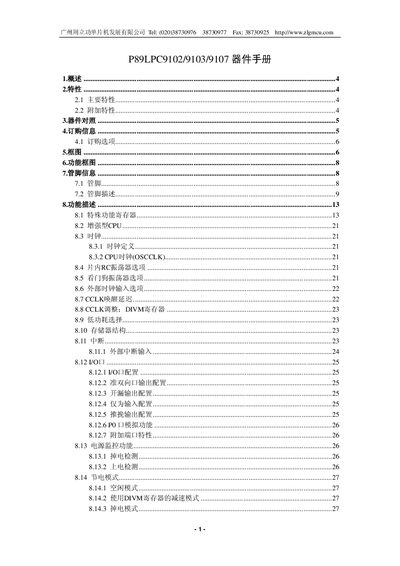

This document describes the features and characteristics of the P89LPC9102/9103/9107 microcontroller series produced by Guangzhou Zhouligong Development Co., Ltd.
The P89LPC9102/9103/9107 series are low‑cost 10‑pin HVSON or 14‑pin TSSOP microcontrollers that integrate a high‑performance 80C51‑compatible CPU, flash memory, RAM, timers, ADC/DAC, UART and other peripherals to reduce component count and board size. They offer internal RC oscillators, low power consumption and a wide I/O voltage range.
Key specifications include 1 kB byte‑addressable flash, 128 bytes of RAM, two 16‑bit timers (one usable as an RTC), a 4‑channel 8‑bit ADC, an enhanced UART with multiple modes, and I/O pins tolerant up to 5.5 V. The devices are supplied in compact HVSON‑10 and TSSOP‑14 packages. This manual is written in Chinese.
| Flash memory | 1 kB |
|---|---|
| RAM | 128 bytes |
| Timers | Two 16‑bit timers |
| ADC channels | 4‑channel 8‑bit ADC |
| I/O voltage range | Vpp 2.4‑3.6 V, pins up to 5.5 V |
Each device provides 1 kB of byte‑addressable flash memory that can be erased per byte.
The microcontroller includes a four‑channel 8‑bit ADC.
The Vpp operation is 2.4 V to 3.6 V, and the I/O pins can tolerate up to 5.5 V.
