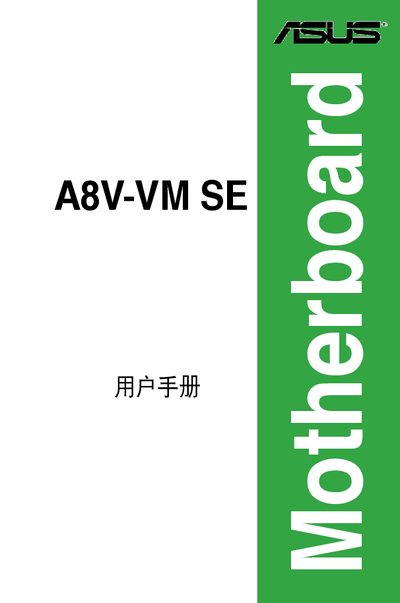

A8V-VM SE motherboard user manual, introducing the motherboard's features, installation steps, BIOS settings and other information.
This manual covers safety precautions, unpacking, and installation steps for the ASUS A8V-VM SE motherboard. It includes detailed warnings for electrical safety and proper handling of components before assembly.
The document also lists the board's technical specifications, supported CPUs, memory configurations, expansion slots, and built‑in audio, network, and USB features. Sections on BIOS configuration and software support guide users through driver installation and system utilities. This manual is written in Chinese.
| CPU socket | Socket 939 |
|---|---|
| Supported processors | AMD Athlon™ 64 / Sempron™ / Opteron™ |
| Chipset | Northbridge VIA K8M890, Southbridge VIA VT8237A |
| PCI Express slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1 |
| PCI slots | 2 × standard PCI |
| Audio codec | Realtek ALC660 6‑channel |
| LAN controller | Realtek RTL8201CL 10/100M PHY |
| USB ports | Up to 8 × USB 2.0 |
| Power connectors | 1 × 24‑pin ATX, 1 × 4‑pin ATX 12V |
It supports Windows 2000, Windows 2003 Server, Windows XP and 64‑bit Windows XP.
The motherboard provides up to eight USB 2.0 ports.
It uses a Socket 939 CPU socket.
The board includes a Realtek ALC660 six‑channel audio codec.
