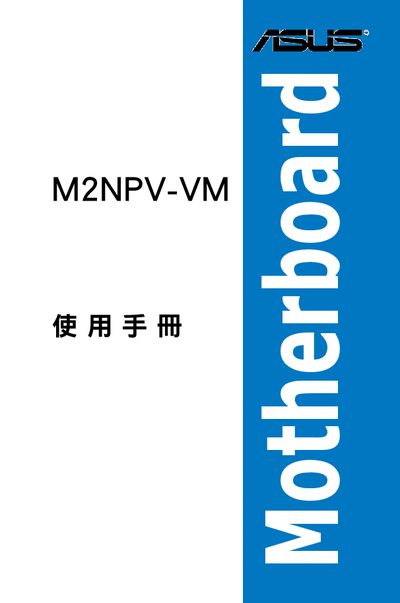

ASUS M2NPV-VM Motherboard User Manual

Brand: ASUS
Category: Other Computer Accessories
Document type: User Manual
Language: Chinese
Pages: 96
File format: PDF
File size: 3.1 MB
Published: 21 September, 2011
Updated: 29 September, 2023
Model: M2NPV-VM
MD5 checksum: 5A4EC2C62A982C07DAF56200C38C48EB
PDF: ASUS M2NPV-VM Motherboard User Manual PDF

About this manual

This manual covers safety precautions, hardware installation, and jumper settings for the ASUS M2NPV-VM motherboard. It explains how to connect power, attach components, and avoid electrical hazards before powering the system.

The document also details BIOS program settings, boot menu options, power management features, and software utilities such as EZ Flash 2. Instructions for updating the BIOS, configuring SATA and PCI‑Express interfaces, and using the built‑in tools are included. This manual is written in Chinese.

What's inside

Safety Information
Product Introduction
BIOS Settings
Jumper Settings
Power Management
Boot Menu
Tools Menu
Software Support

Specifications

PCI Express x1 interface	Supported
PCI Express x16 interface	Supported
SATA ports	1‑4

Frequently asked questions

How can the BIOS be updated on the M2NPV-VM motherboard?

The BIOS can be updated using ASUS EZ Flash 2 or the AwardBIOS Flash program as described in the BIOS Settings chapter.

How are jumper settings configured on the board?

Jumpers are set by placing a jumper cap over the appropriate pins, e.g., [1‑2] for Jumper Mode or [2‑3] for JumperFree mode.
