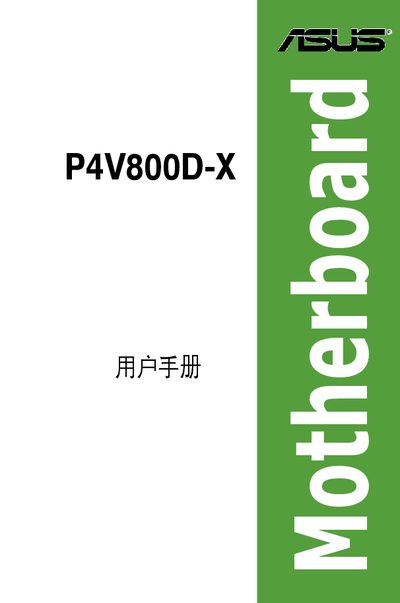

This is the user manual for P4V800D-X motherboard, which introduces the features of the motherboard, installation and use methods
This manual introduces the Asus P4V800D‑X motherboard, covering its key features, supported processors, memory architecture, and expansion slots. It guides users through hardware installation, connector identification, and safety precautions.
The document also details BIOS configuration, RAID setup, and the software utilities included on the accompanying CD. Additional sections explain how to obtain firmware updates and where to find further product information.
| CPU Socket | Socket 478 |
|---|---|
| Supported CPUs | Intel Pentium 4 / Celeron up to 3.4 GHz |
| Memory Type | DDR SDRAM (PC2100/PC2700/PC3200), non‑ECC |
| Maximum Memory | 4 GB |
| Expansion Slots | 1 AGP 8X, 1 PCI‑Express x16 (x4 mode), 3 PCI, 1 PCI‑Express x16 (x4 mode) |
| SATA & RAID | 2 Serial ATA ports, RAID 0/1/JBOD support |
| Audio Codec | ADI AD1888, supports S/PDIF output |
| LAN Controller | Realtek 10/100 Mbps Ethernet |
| USB Ports | 8 USB 2.0 ports (4 on board, 4 via headers) |
The board supports Intel Pentium 4 and Celeron processors for Socket 478 with frequencies up to 3.4 GHz.
It uses DDR SDRAM (PC2100/PC2700/PC3200, non‑ECC) and can hold up to 4 GB of memory.
